Industrial hardware manufacturer AAEON has formally launched the MIX-PTLWV1, its first Mini-ITX motherboard powered by Intel Core Ultra Series 3 processors, codenamed Panther Lake. Designed specifically for next-generation edge artificial intelligence applications, the compact board pairs low-power processing options with expandable high-speed networking and modern memory architecture.

The motherboard target platforms requiring significant processing efficiency within tight mechanical enclosures, supporting processor thermal design power (TDP) limits between 15W and 25W. By integrating Intel's latest silicon architecture alongside robust I/O capabilities, AAEON aims to deliver an upgrade path for smart factories, automated logistics, and computer vision systems.

AAEON MIX-PTLWV1 Mini-ITX Specs and Features

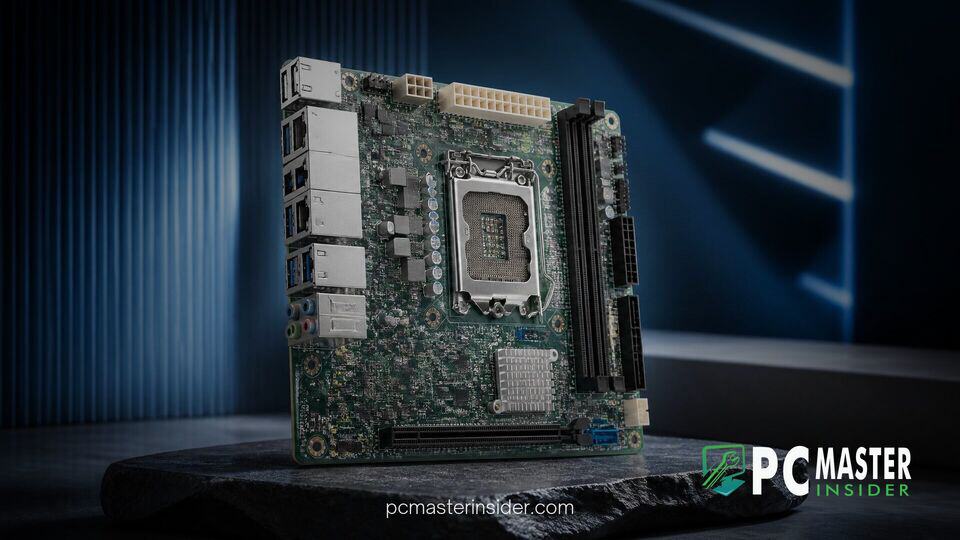

The AAEON MIX-PTLWV1 Panther Lake motherboard brings low-power architectural refinements down to a standard 170 mm x 170 mm form factor. Designed for continuous industrial deployment, the platform focuses on delivering heterogeneous computing performance without demanding complex thermal dissipation solutions.

Intel Panther Lake Architecture and Edge AI Performance

At the core of the MIX-PTLWV1 lies Intel Core Ultra Series 3 architecture, combining compute cores, integrated Intel Arc GPU graphics, and dedicated NPU hardware. This multi-engine approach allows developers to offload machine learning tasks, video analytics, and automated decision-making to dedicated silicon blocks while preserving CPU headroom for system tasks.

This architectural shift aligns with broader industry efforts toward local inference, similar to Microsoft's local AI strategy for Windows 11 designed to reduce reliance on cloud infrastructure. By conducting real-time processing directly at the physical machine layer, industrial operators can minimize operational latency and protect sensitive telemetry data.

DDR5 Memory Support and Rear I/O Connectivity

To support memory-intensive artificial intelligence models, the MIX-PTLWV1 provides two dual-channel DDR5 C/SO-DIMM memory slots capable of handling speeds up to 6400 MHz. System capacity maxes out at 128GB, marking a noticeable capacity increase over previous-generation industrial Mini-ITX platforms that capped system RAM at 96GB.

Networking versatility is a primary highlight of the rear panel. Standard board configurations feature two 2.5GbE LAN ports powered by Intel I226 controllers. However, selected board SKUs can be specified with two additional 10GbE RJ-45 ports via an integrated Intel E610-XAT2 controller, yielding up to four high-speed network interfaces on a single Mini-ITX rear shield.

For display configurations, the board includes four physical DisplayPort 1.4 outputs, each capable of delivering 4K resolution at 60 Hz. Expansion slots consist of an open-edge PCIe Gen 5 x8 slot, an M.2 2280 M-Key slot for fast NVMe storage, an M.2 2230 E-Key slot for Wi-Fi modules, and an M.2 3042/52 B-Key slot equipped with a Nano SIM socket for cellular connectivity.

Target Workloads and Edge Computing Applications

AAEON designed the MIX-PTLWV1 specifically for hardware integrators deploying edge hardware into harsh physical environments. Supported operating environments range from 0°C to 60°C, and power delivery operates over a wide-range DC input spanning 12V to 24V, eliminating the need for strict desktop-style power supplies in industrial cabinets.

Primary commercial applications include automated optical inspection (AOI), robotic vision controllers, smart retail terminals, and medical imaging devices. System builders seeking high-density processing in small form factors often evaluate compact systems such as the Geekom IT13 mini PC with Intel Panther Lake, but industrial deployments favor motherboards like the MIX-PTLWV1 for their extended lifecycle guarantees, legacy serial headers, and direct DC power input.

The board also hosts internal serial connectors supporting RS-232, RS-422, and RS-485 interfaces, an 8-bit programmable Digital I/O header, and dual-channel LVDS or eDP display headers to power direct-attached touch panels in kiosk enclosures.

Market Availability and Industrial Hardware Impact

The arrival of Panther Lake inside industrial motherboards underscores how rapidly semiconductor vendors are adapting client processor architectures for commercial edge applications. As hardware suppliers expand their embedded portfolios, enterprise buyers gain access to server-like networking capabilities and low-latency inference on modest power budgets.

While consumer-focused systems continue shifting toward unified memory and soldered designs, embedded products like the MIX-PTLWV1 preserve repairability and modular expansion through removable SODIMM modules and standard M.2 sockets. Other manufacturers are taking similar low-power approaches with AMD hardware, as seen in Acemagic's F9A mini workstation targeting compact compute applications.

AAEON has listed official specifications on its product directory, with ordering options, documentation, and driver packages available for industrial clients preparing pilot deployments. Official mass production units are expected to ship through global distribution channels catering to system integrators and embedded solution providers.

Overall, the launch of the MIX-PTLWV1 highlights how Panther Lake is establishing a foothold across specialized hardware markets, bringing low-power neural processing and high-bandwidth networking to modern industrial infrastructure.
