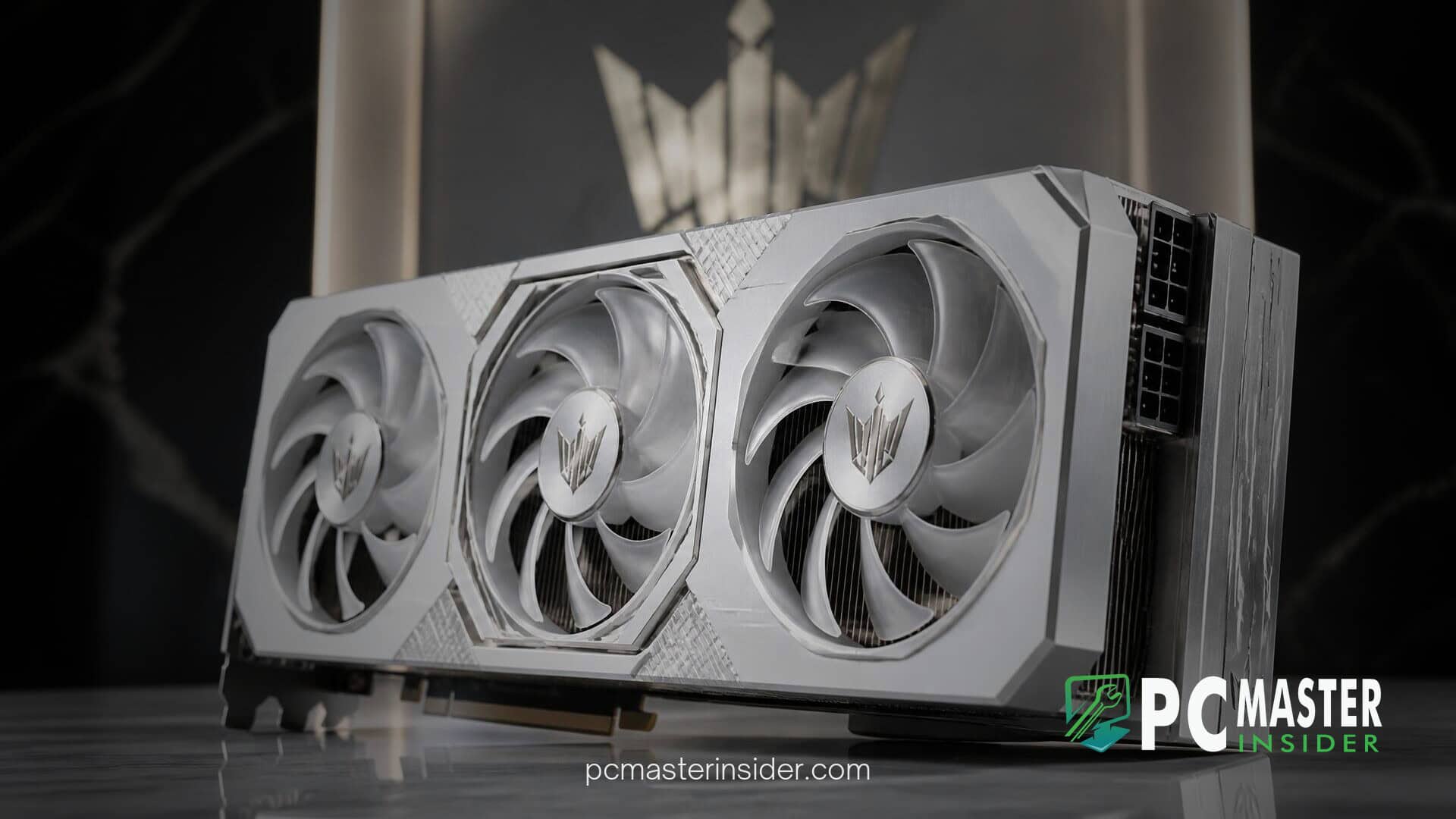

Galax has officially unveiled its flagship GeForce RTX 5080 Hall of Fame (HOF) Extreme graphics card. The new graphics processing unit (GPU) stands out as the only RTX 5080 design on the market to feature dual 12V-2x6 16-pin power connectors, offering unique cable management choices alongside extreme overclocking capabilities.

Targeted directly at hardware enthusiasts and competitive overclockers, the flagship card pairs Nvidia's latest Blackwell architecture with Galax's iconic custom white printed circuit board (PCB) design. The engineering behind the card focuses heavily on clean build aesthetics, robust power delivery, and heavy thermal capacity.

Galax Introduces Dual 12V-2x6 Power System on RTX 5080 HOF Extreme

The standout feature of the Galax RTX 5080 HOF Extreme is its implementation of two separate 12V-2x6 power headers. While dual 16-pin power configurations were previously reserved for ultra-flagship models like Galax's crystal-encrusted RTX 5090 HOF graphics card, Galax has brought this dual-connector arrangement down to the RTX 5080 tier.

Rather than requiring gamers to plug in two power cables at all times, Galax designed the dual-port system to serve dual purposes. Users can choose to run a single cable into either header for standard power input or plug in both cables simultaneously to enable current sharing. Distributing the electrical current across both connectors lowers the load on each individual header, effectively reducing connector operating temperatures and mitigating safety concerns over high transient power draws. Extreme overclockers using exotic cooling solutions like liquid nitrogen can also tap into the secondary header to supply uninterrupted extra current.

How Bottom and Top Connector Options Enable Hidden Cable Management

To appeal to custom PC builders, Galax positioned the two 12V-2x6 headers in contrasting locations. The primary header sits in the conventional spot along the top edge of the card. The secondary connector is tucked away near the bottom edge near the PCIe x16 slot, concealed behind the main GPU shroud.

This dual-position layout grants builders complete freedom over how power cables are routed through the chassis. By connecting the power supply cable to the bottom hidden port, builders can pass the cable directly through the motherboard tray cutouts or behind lower shroud panels. This approach creates a virtually cable-free aesthetic through the main side panel window of the PC case.

Power Delivery Specifications and Magnetic Connector Cover

Because running a single cable leaves one power header exposed, Galax includes a color-matched magnetic cover inside the box. The magnetic cap seamlessly snaps over whichever 12V-2x6 power port remains unused, protecting the internal pins from dust accumulation while preserving the card's sleek, unified appearance.

Underneath the massive heatsink, the card features a heavy-duty 20+4 phase power delivery design. A total of 20 phases are dedicated exclusively to supplying power to the main graphics processor, while 4 phases feed the 16GB of high-speed GDDR7 memory. The custom PCB utilizes gold-plated contacts (ENIG plating), digital PWM controllers, eFuse circuit protection, and custom HOF inductors to ensure clean voltage regulation under extreme load conditions. Monitoring thermal behavior and electrical loads remains simple for enthusiasts through diagnostic tools like GPU-Z hotspot temperature tracking features.

Performance Features and High-End Overclocking Capabilities

The Galax RTX 5080 HOF Extreme ships with a Dual BIOS switch, offering distinct operating profiles:

  • Gaming Mode: Operates at Nvidia's standard 360-watt Total Graphics Power (TGP) reference target, pushing boost clock speeds up to 2,655 MHz.
  • OC Mode: Unlocks an elevated 400-watt TGP limit, boosting maximum core clock frequencies up to 2,805 MHz right out of the box.

The 16GB GDDR7 memory runs on a 256-bit bus at 30 Gbps, providing up to 960 GB/s of total memory bandwidth. Cool air is provided by a quad-fan cooling assembly. The thermal module combines a nickel-plated vapor chamber baseplate, composite copper heat pipes, and large-diameter Wings 3.0 axial fans engineered to maximize airflow pressure while minimizing acoustic output.

Availability and Market Expectations for the HOF Extreme Edition

Galax officially launched the RTX 5080 HOF Extreme in the Chinese retail market with a fixed listing price of 19,999 Yuan (roughly $2,995 USD). The retail package includes several enthusiast accessories, such as an aluminum alloy support bracket, custom power extension cables, a 5V ARGB motherboard synchronization cable, and a detachable HOF PANEL monitoring module.

While global availability timelines outside of Asian retail channels have not yet been fully detailed by Galax, international distribution for the flagship Hall of Fame card is expected to follow. The card's innovative dual power options set a compelling new precedent for hardware flexibility and cable management in high-performance PC building.
